Smart AHF
Smart Active Harmonic Filter
Real-time harmonic, reactive and unbalance compensation.

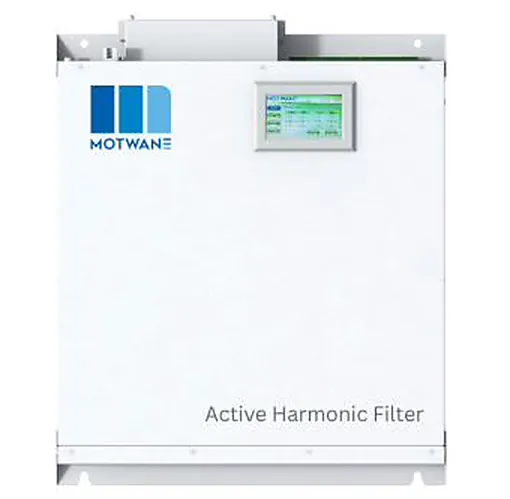

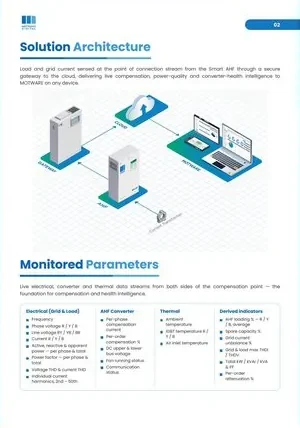

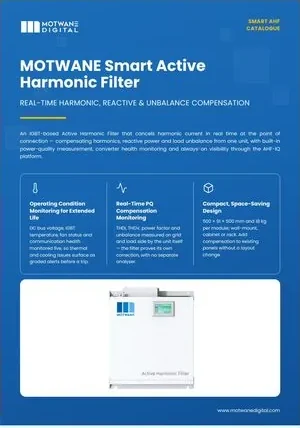

The Smart AHF is an IGBT-based active harmonic filter that cancels harmonic current in real time at the point of connection. One unit compensates harmonics, reactive power and load unbalance, with built-in power quality measurement and converter health monitoring through the AHF-IQ platform.
Available models
- MAHF 30A
- MAHF 50A
- MAHF 75A
- MAHF 100A
- MAHF 150A
- Designed & made in India
- ISO 9001:2015 certified company
- In-house R&D
Key features
≥ 95% harmonic compensation
Targeted harmonics reduced by 95% or more, to meet IEEE 519 at the PCC.
Ultra-fast response
Under 50 µs instantaneous and under 5 ms full response.
2nd to 50th order
Individual harmonic orders selectable to match the load.
3-level IGBT topology
Lower switching loss and cleaner compensation, over 97% efficiency.
Compact modules
500 × 91 × 500 mm and 18 kg, for wall, cabinet or rack.
Applications
Asset / use case
VFD-heavy loads
Segment- Industrial Plants
- OEMs
Asset / use case
Commercial & data facilities
Segment- Commercial Buildings
- Data Centres
