Contact Resistance Meter
Micro-ohm contact resistance measurement at 100 A or 200 A.

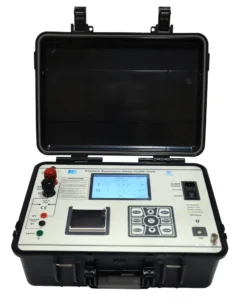

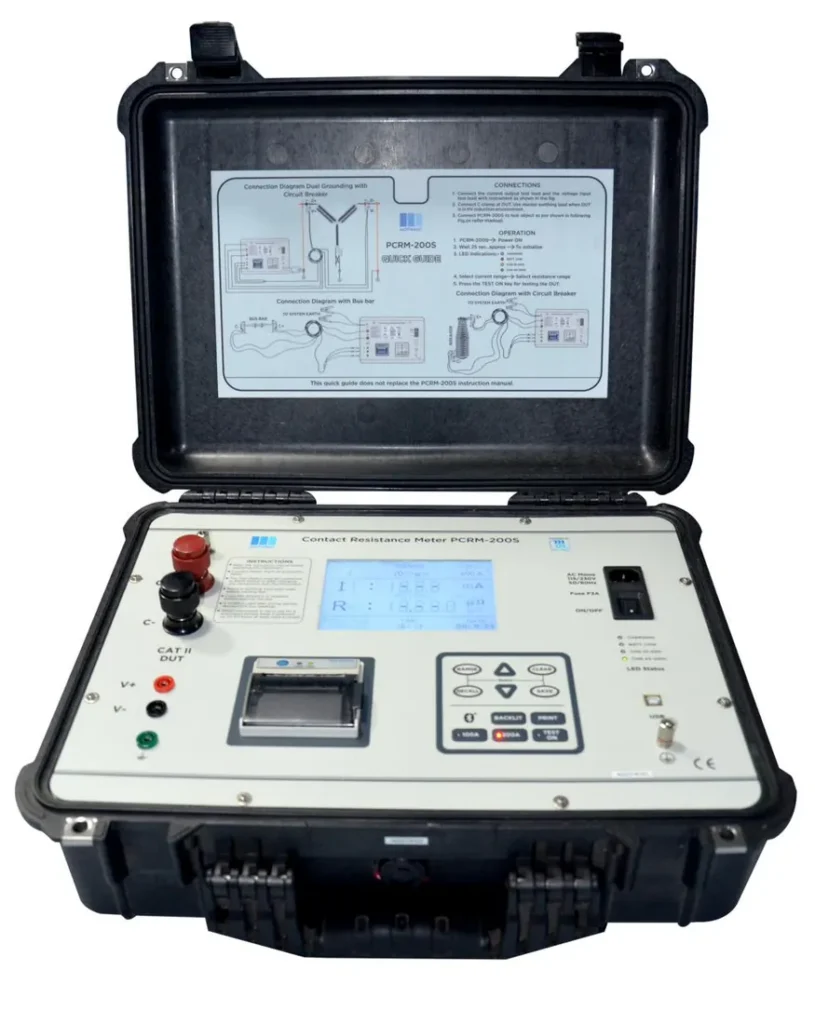

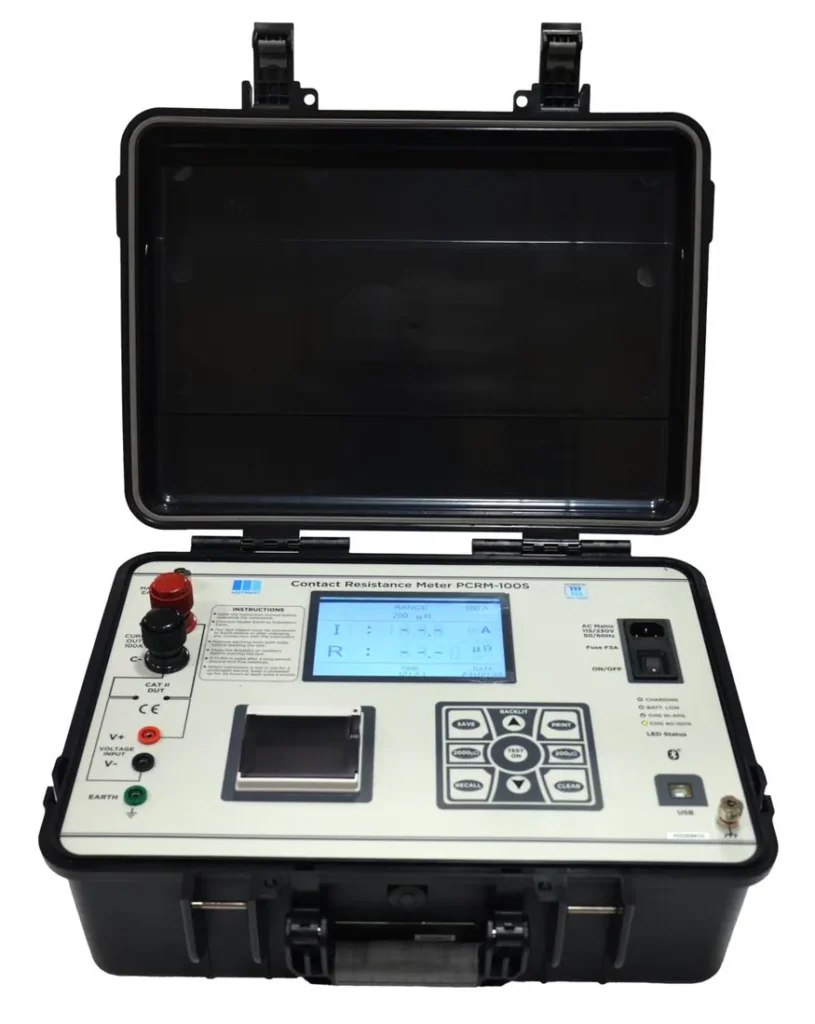

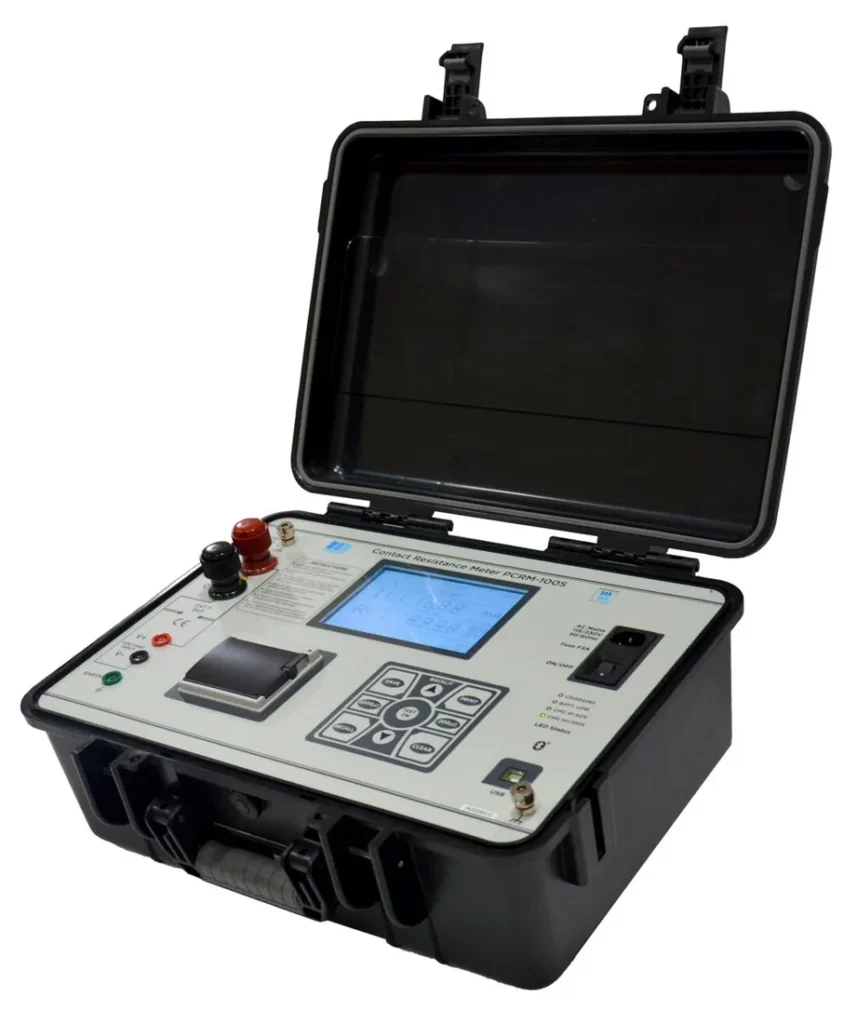

The PCRM 100S and 200S measure extremely low resistance in micro-ohms using the Kelvin 4-wire method, with true DC, ripple-free current for testing bus bars and circuit breaker contacts. A large backlit LCD shows injected current, measured resistance and voltage drop in real time.
Available models
- Designed & made in India
- ISO 9001:2015 certified company
- In-house R&D
Key features
Fully automatic
Microprocessor-controlled testing with direct mV drop reading.
Safe test
Dual ground and remote control over USB from a PC.
Rugged suitcase
IP67 case that withstands water, dust and sand, and floats when closed.
Print and tag
Built-in thermal printer and Bluetooth for the MOT-WARE app and asset tagging.
Mains and battery
8 to 10 hours of backup on a single charge.
Applications
Asset / use case
Circuit breaker contacts
Segment- Power Utilities
- Industrial Plants
Asset / use case
Busbar joints
Segment- Power Utilities
- Industrial Plants
- Data Centres
Asset / use case
Switchgear, Isolators
Segment- Utilities
- Railways & Metros
- OEMs
Asset / use case
Installation & Commissioning
Segment- EPC Contractors
- OEMs
