Digital Multimeter
True RMS multimeters with a 6000-count backlit display, CAT IV 600 V / CAT III 1000 V and IP54.

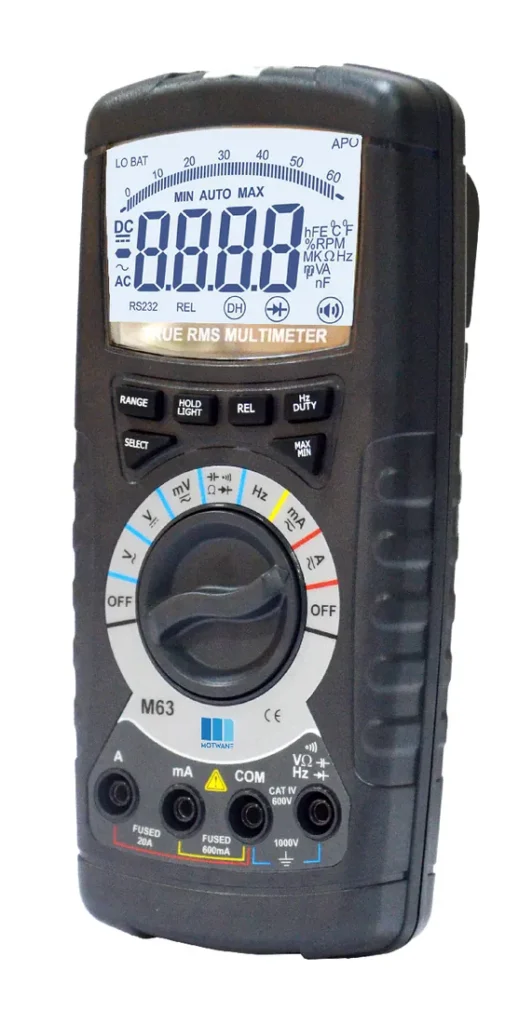

M63 and M65 are True RMS digital multimeters with a 6000-count backlit LCD, covering voltage, current, resistance, capacitance, frequency and duty cycle, plus diode and continuity tests. Both are designed in Motwane’s research laboratory and built under stringent manufacturing processes, complying with IEC 61010-1 safety standards with CE marking and IP54 protection.
Available models
- M63
- M65
- Designed & made in India
- ISO 9001:2015 certified company
- In-house R&D
Key features
6000-count backlit LCD
White backlight and a 60-position analog bar graph for trend indication and highly linear readings.
True RMS AC measurement
AC voltage and AC current are measured as True RMS values.
R, C, diode & continuity
Resistance, capacitance, diode and continuity measurement.
Frequency & duty cycle
Selectable frequency and duty cycle measurement; M65 shows both at once on its dual display.
Everyday functions
Select, Range, Hold, Rel, Light and Max/Min functions; M63 also has a dedicated Hz/Duty key.
Fuse-protected inputs
Fast-blow ceramic fuses protect the current input terminals.
Certified safety
CE marked; complies with IEC 61010-1 and EN 61326-1, with reinforced insulation.
IP54, rugged build
Dust and water protection in a robust, rugged double-mould casing.
Applications
Asset / use case
Power system maintenance
Segment- Generation
- Transmission
- Distribution
Asset / use case
Electrical installation & repair
Segment- Electrical Contractors
- Railways
- Telecommunication
Asset / use case
Plant troubleshooting
Segment- Steel
- Cement
- Mining
- Process Industries
Asset / use case
Electronics test & R&D
Segment- Power Electronics
- Heavy Engineering
- Defence
- Aviation
- R&D Industries
