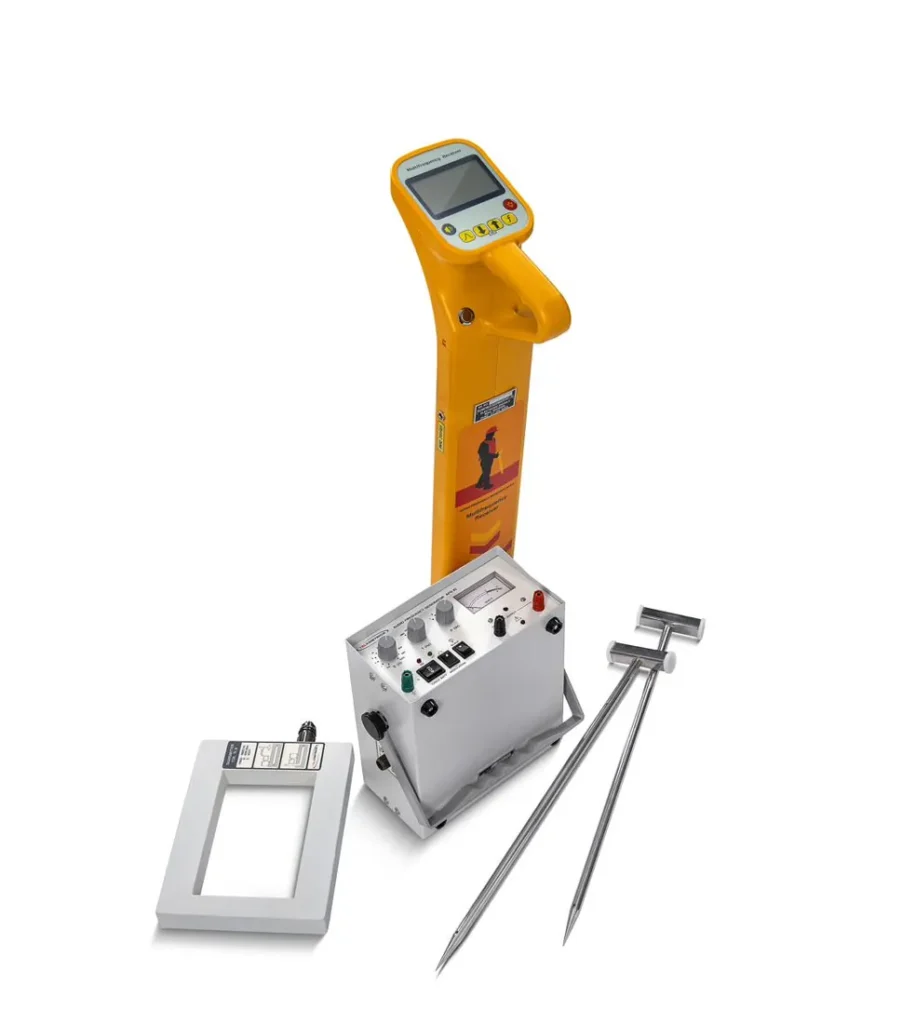

Cable Route Tracer
Audio frequency route tracing of underground cables and pipes.
The CRT series are audio frequency systems for tracing the route of any buried metallic cable, and for ground surveys and pipe tracing in inductive mode, giving accurate results even with other utilities nearby.
Available models
- Designed & made in India
- ISO 9001:2015 certified company
- In-house R&D
Key features
Multiple tracing modes
Direct, passive, inductive, clamp and radiation (CRT 15DG).
Depth measurement
Up to 5 m on every model.
Fault pin-pointing
Contact-type faults with direct current reading (D models).
All-digital processing
Auto impedance matching and a colour compass display (CRT 15DG).
Long routes
Up to 15 km (D models) or 20 km (CRT 15DG).
Applications
Asset / use case
Underground power cables
Segment- Power Utilities
- Industrial Plants
Asset / use case
Telecom cables
Segment- Commercial Buildings
- Data Centres
Asset / use case
Metallic pipes
Segment- Oil & Gas
- Industrial Plants
