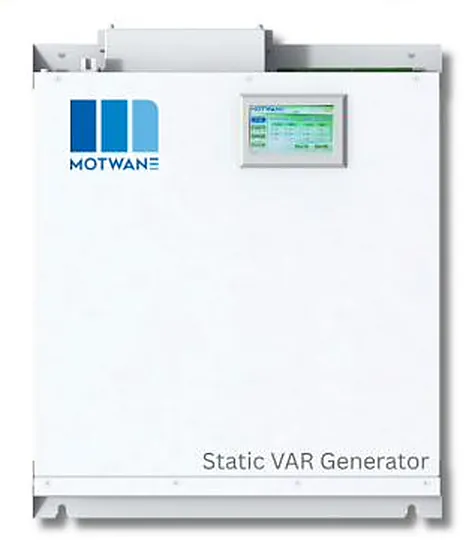

Smart SVG
Smart Static VAR Generator
Dynamic reactive power and unbalance compensation for LV networks.
The Smart SVG is an IGBT-based static var generator for step-less, bidirectional reactive power and three-phase unbalance compensation on LV networks, with built-in power quality measurement and monitoring through the SVG-IQ platform.
Available models
- Smart SVG 30 kVAr
- Smart SVG 50 kVAr
- Smart SVG 100 kVAr
- Designed & made in India
- ISO 9001:2015 certified company
- In-house R&D
Key features
True real-time compensation
Reactive current corrected cycle by cycle, under 50 µs instantaneous response.
Leading, lagging and unbalance
Three duties from one converter, power factor up to 0.99 or better.
Unlimited parallel units
Master/follower control; add modules as load grows.
Condition monitoring
DC bus, IGBT temperature, fans and communication monitored live.
Applications
Asset / use case
LV industrial networks
Segment- Industrial Plants
Asset / use case
Commercial & data facilities
Segment- Commercial Buildings
- Data Centres
Asset / use case
Renewable plants
Segment- Renewable Energy Projects
